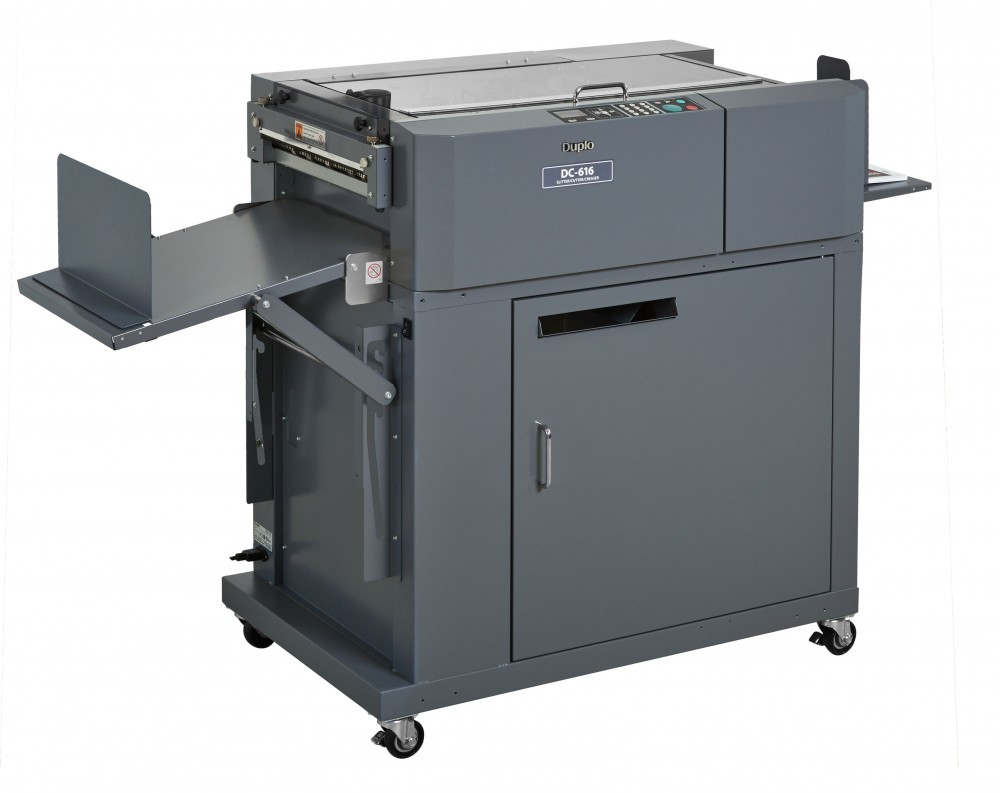

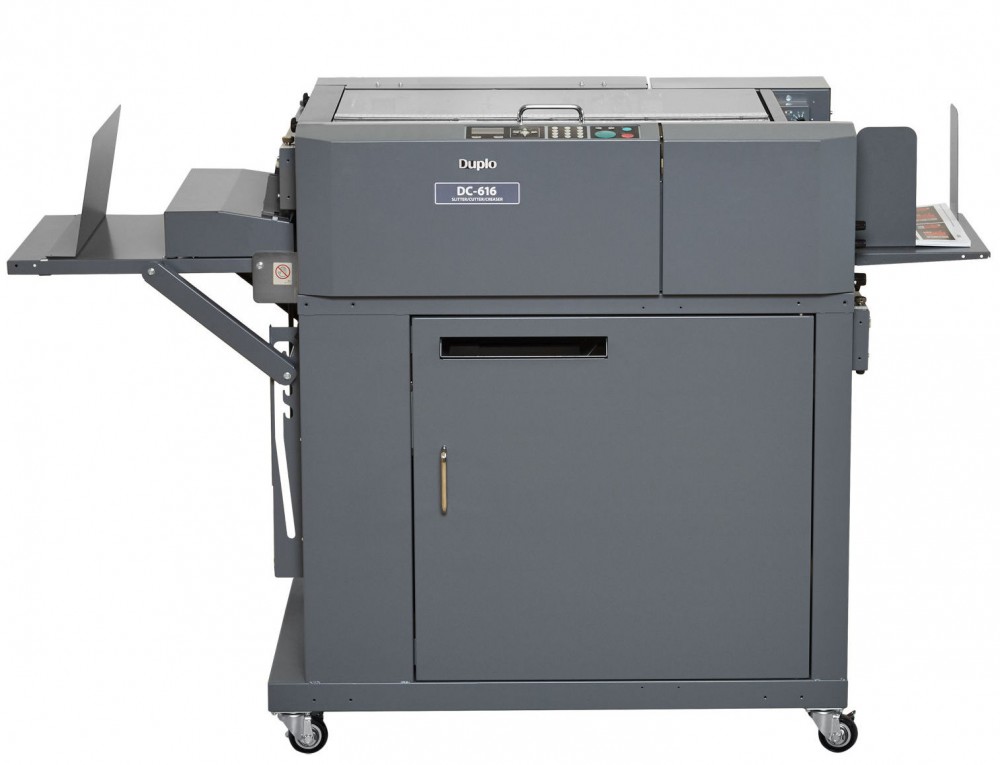

Duplo DC-616 Cutter Creaser
NEW
Product description:

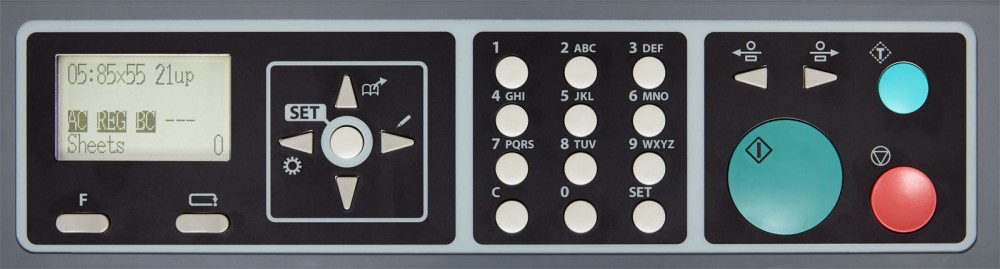

The Duplo DC-616 Slitter/Cutter/Creaser is the perfect finishing solution for the Short-Run, on demand digital printer. The DC-616 offers a simple touch screen panel and graphical interface set up, simple and intuitive is the motto for the new DC-616.
Designed to remove printed borders and prevent toner cracking on digital colour documents, this compact all in one finisher can process up to 6 slits, 25 cuts, 20 creases and 2 perforations in a single pass – bringing efficiency and automation to print finishing. Offering fully automatic setup and quick changeovers, the DC-616 can finish a wide array of full bleed digital applications including greeting cards, invitations, brochures, book covers, photos, and business cards normally only possible by using multiple, separate finishing devices.
The versatility of the DC-616 makes it ideal for finishing full bleed applications in a single pass. Its rotary slitters, guillotine cutter and depth-adjustable creaser provide the versatility of multiple machines without the costly, manual setup and production times. The introduction of the new perforation module and the ability to print 21 or 25 up SRA3 business cards enables operators of the DC-616 to offer even more at the touch of a button.

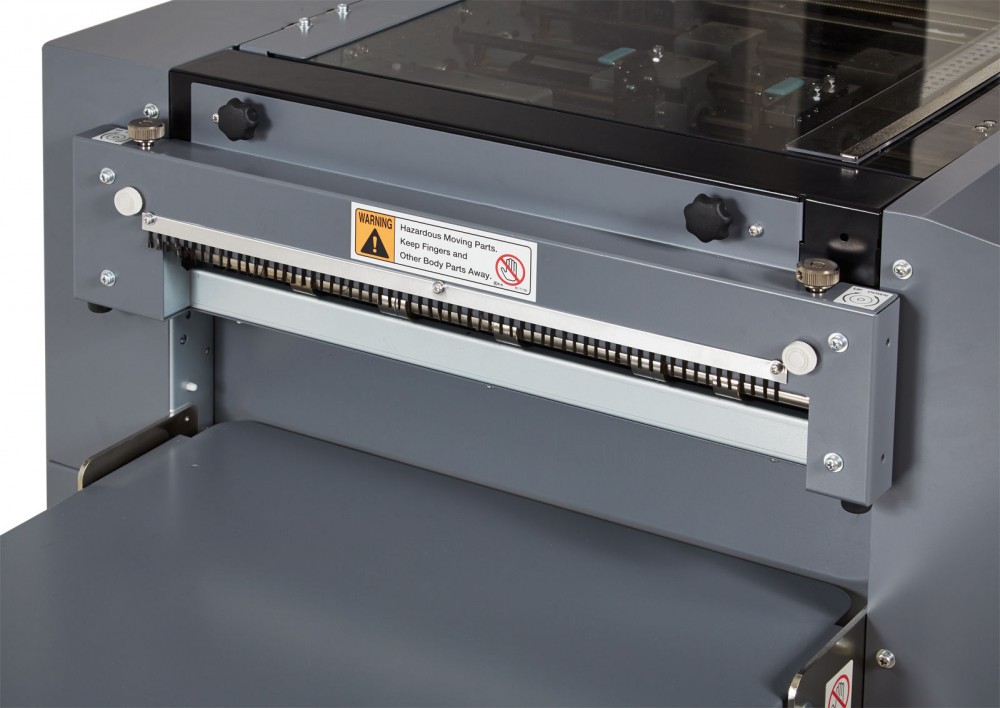

Margins trimmed horizontally by the slitter and vertically by the cutter, are automatically deposited into the large waste bin. Only the finished pieces are delivered into the exit tray. Creasing digitally-printed output prior to folding prevents toner cracking and unattractive fold lines. The creaser utilizes male and female matrix channels to create up to 20 creases across the sheet, enabling documents to be folded with ease. Creasing performance is optimized via the adjustable 3-step crease depth for various paper types and weights.
Feed Capacity 100mm
Paper weight 110-350gsm
Paper size 210mm x 210mm to 320mm x 650mm (999.99 with extended kit)
25 Cuts in a Single Pass
20 Creases in a Single Pass

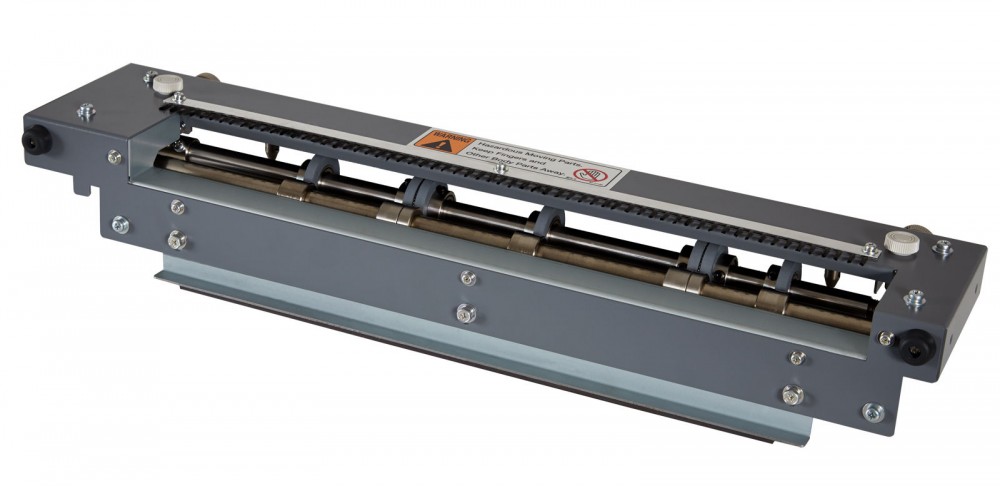

Up to 2 Perforations (When fitted with optional perforation module)
Produces up to 10 Sheets per minute

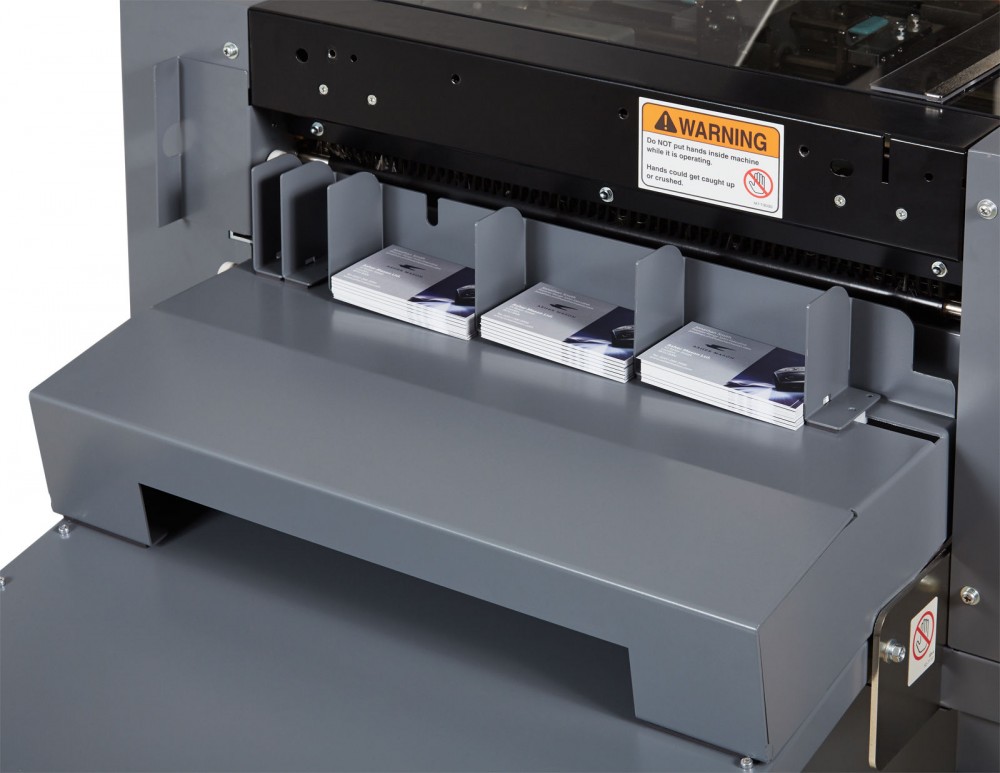

Offers both 21 and 25 up Business Cards (SRA3 Sheet)
Designed to remove printed borders and prevent toner cracking on digital colour documents, this compact all in one finisher can process up to 6 slits, 25 cuts, 20 creases and 2 perforations in a single pass – bringing efficiency and automation to print finishing. Offering fully automatic setup and quick changeovers, the DC-616 can finish a wide array of full bleed digital applications including greeting cards, invitations, brochures, book covers, photos, and business cards normally only possible by using multiple, separate finishing devices.
The versatility of the DC-616 makes it ideal for finishing full bleed applications in a single pass. Its rotary slitters, guillotine cutter and depth-adjustable creaser provide the versatility of multiple machines without the costly, manual setup and production times. The introduction of the new perforation module and the ability to print 21 or 25 up SRA3 business cards enables operators of the DC-616 to offer even more at the touch of a button.
Margins trimmed horizontally by the slitter and vertically by the cutter, are automatically deposited into the large waste bin. Only the finished pieces are delivered into the exit tray. Creasing digitally-printed output prior to folding prevents toner cracking and unattractive fold lines. The creaser utilizes male and female matrix channels to create up to 20 creases across the sheet, enabling documents to be folded with ease. Creasing performance is optimized via the adjustable 3-step crease depth for various paper types and weights.
Feed Capacity 100mm
Paper weight 110-350gsm
Paper size 210mm x 210mm to 320mm x 650mm (999.99 with extended kit)
25 Cuts in a Single Pass
20 Creases in a Single Pass
Up to 2 Perforations (When fitted with optional perforation module)
Produces up to 10 Sheets per minute
Offers both 21 and 25 up Business Cards (SRA3 Sheet)
