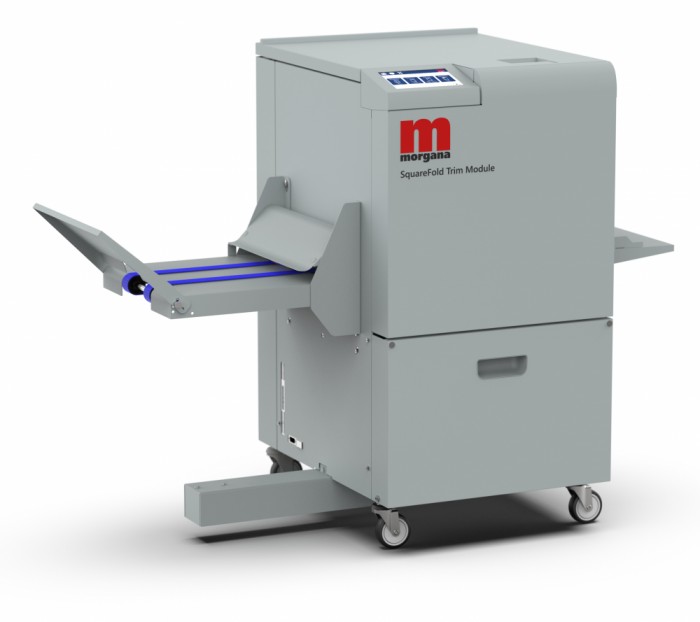

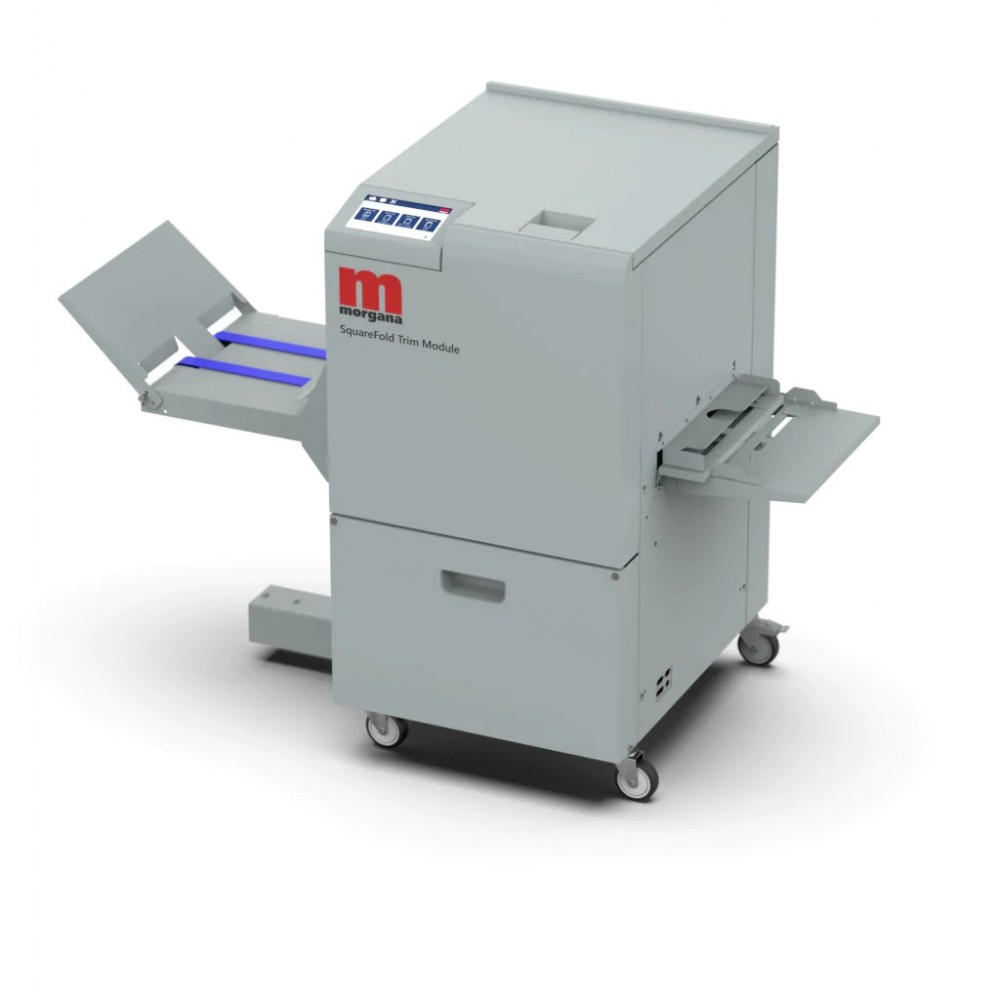

Morgana SFT SquareFold Trimmer

Product description:
Combines square folding and trimming in one module. An industry first.

Print needs to work harder and smarter than ever before. The all NEW Morgana SFT SquareFold Trimmer is the perfect complement to any CRD or office looking to add value to the finished booklet.

The industry-first Morgana SFT delivers two functions in one – booklet square folding and trimming. Simply insert a stapled and folded booklet and out comes a professionally finished document – with a sharp square folded spine and neatly trimmed front edge.

Operator Assisted Three-Side TrimmingNot all customers have access to a guillotine or the time to use one for short run jobs. The SFT module can also process booklets for bleed trimming book by book in an operator assisted process. Full bleed booklets are now an option for small CRD’s or office installations.

The look of a Perfect Bound book - The module is equipped with the heavy-duty SquareFold module you find in our larger Booklet Making Systems. This enables booklets made from a wide variety of paper stocks and sizes to have a perfectly formed spine. It also makes the booklets easier to stack. The result is the look and feel of a Perfect Bound book – At a fraction of the cost.

Paper weight (Min) 63gsm
Paper weight (Max) 350gsm
Sheet count (Min)1 folded sheet
Sheet count (Max)50 stapled and folded sheets
Feeded book size W x L (Min)148.5 x 105mm
Feeded book size W x L (Max)320 x 310mm
Finished book size W x L (Min)148.5 x 100mm
Finished book size W x L (Max)320 x 310mm
318 x 309mm (trimming all sides)
Face trimming (Min)1mm- Face trimming (Max)210mm
Side trimming (Min)1mm - Side trimming (Max)24mm
Duty cycle Average 20.000 booklets/month
