Ideal 5560 LT Guillotine

NEW
Product description:

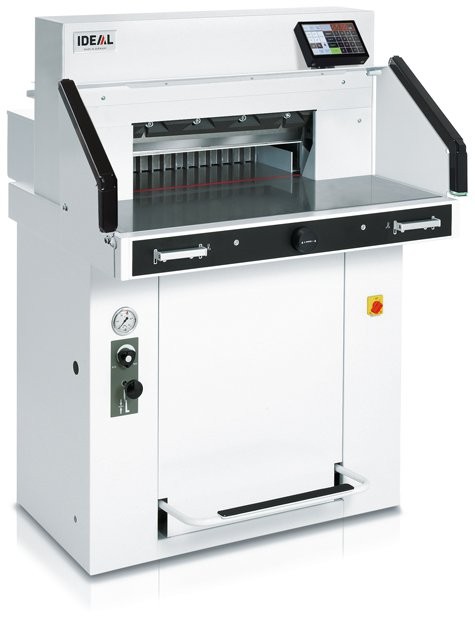

The IDEAL 5560LT employs the latest technology to provide a fully configured commercial print guillotine for the B3 and digital print market. The guillotine includes a hydraulic clamp drive to enable fine control over the holding of the stack to be cut without damaging the print work. An Air Table for quick and smooth movement of your paper stocks around the cutting area. A foot pedal provides preclamping and the cutting line indicator to ensure that cutting takes place where required. It adds up to a highly versatile machine able to cope with a wide range of print work and material types.

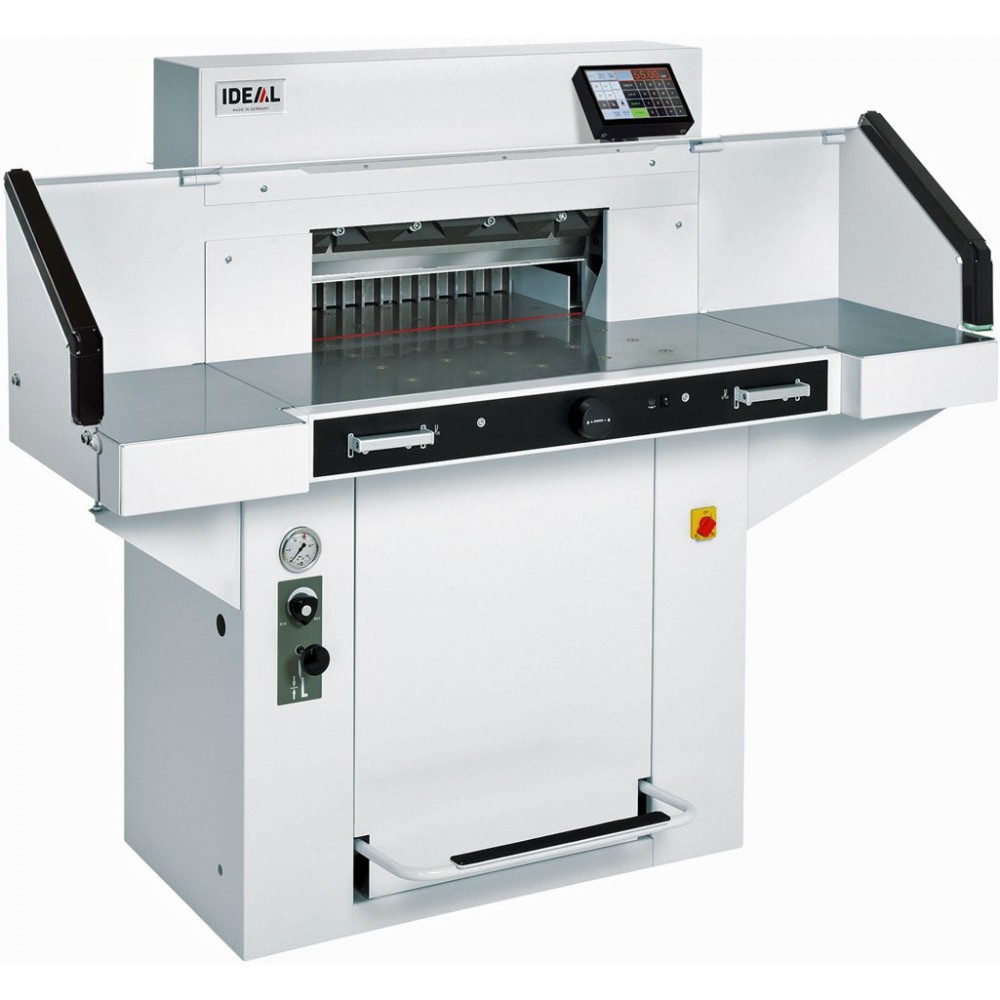

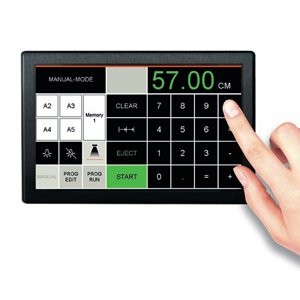

The IDEAL 5560LT is a highly flexible guillotine able to take on all types of work thanks to hydraulic clamping system and Air Table more normally associated with larger guillotines. Productivity is enhanced through programming of up to 99 jobs; Eject function to push paper forwards; side tables to hold the stack before and after cutting. Diagnostic display shows error messages to help pinpoint faults that need attention.

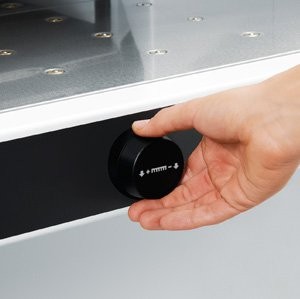

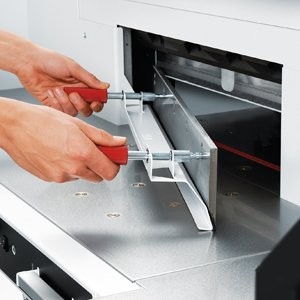

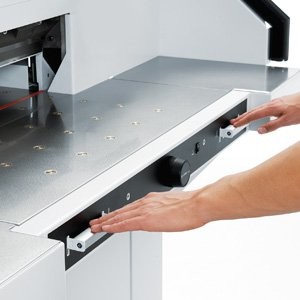

The hydraulic clamp system on the IDEAL 5560LT provides absolute control over the stack position during cutting. The Air Bed makes digitally printed media float around the cut area with ease. The optical cutting indicator ensures that the blade will fall exactly where required. Side lays at front and rear of the table help position the stack precisely. Back gauge movement is automatic, aided by a manual control for precise positioning. The programmable controls set the cut position to 0.1mm accuracy.

Cutting length (mm) = 550
Cutting height (mm) = 95
Table depth (mm) = 570
Narrow cut (mm) = 32
