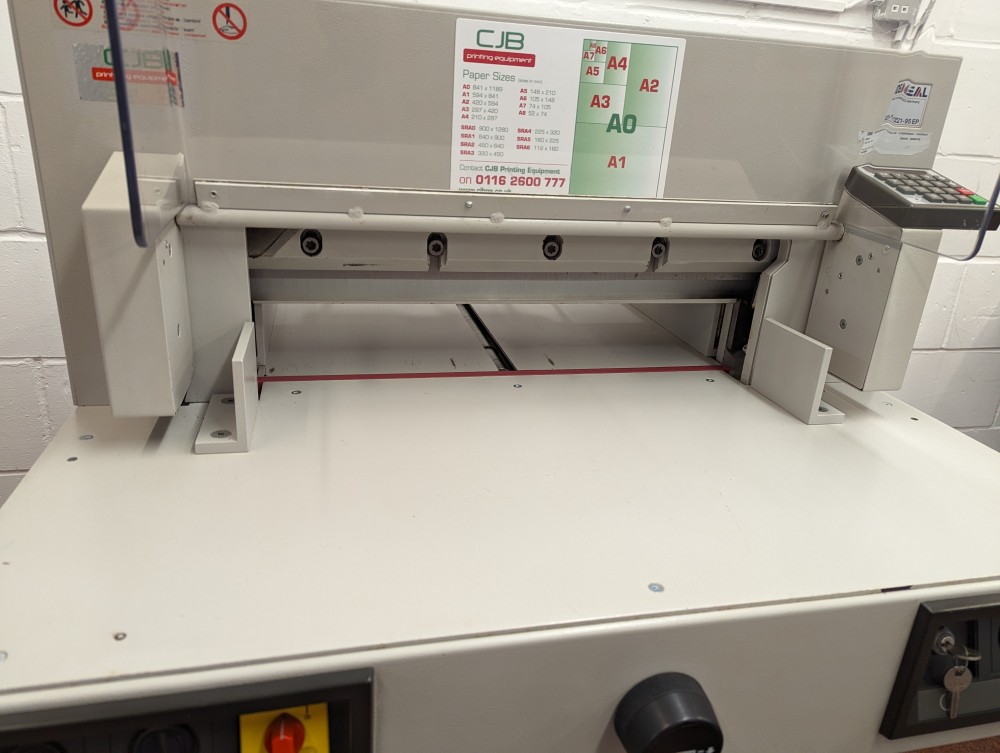

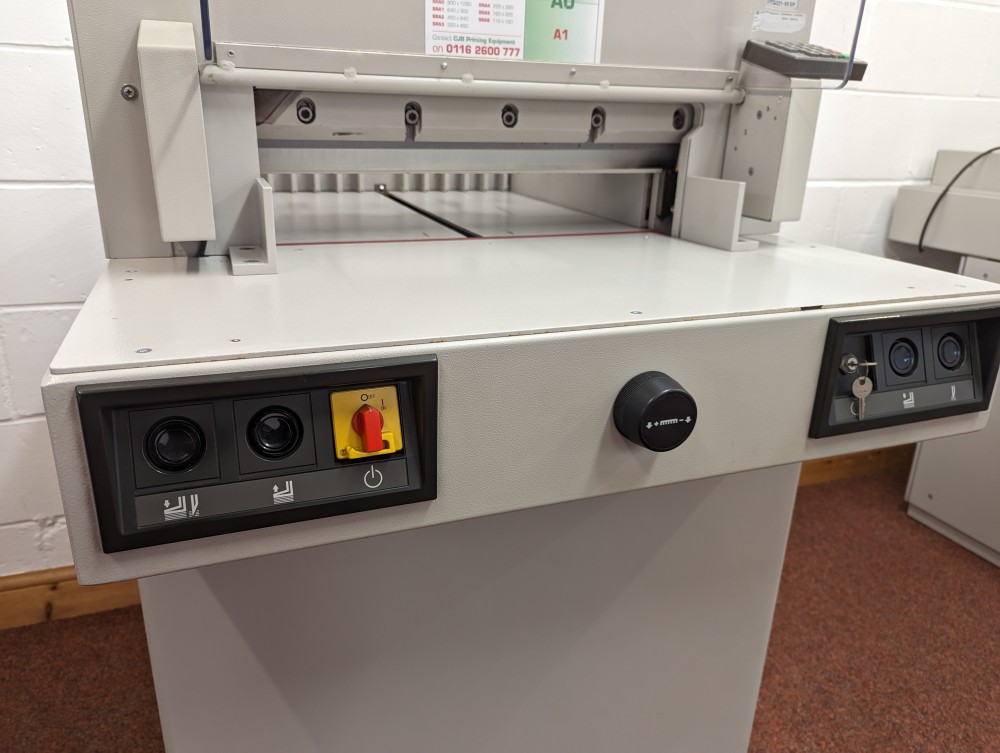

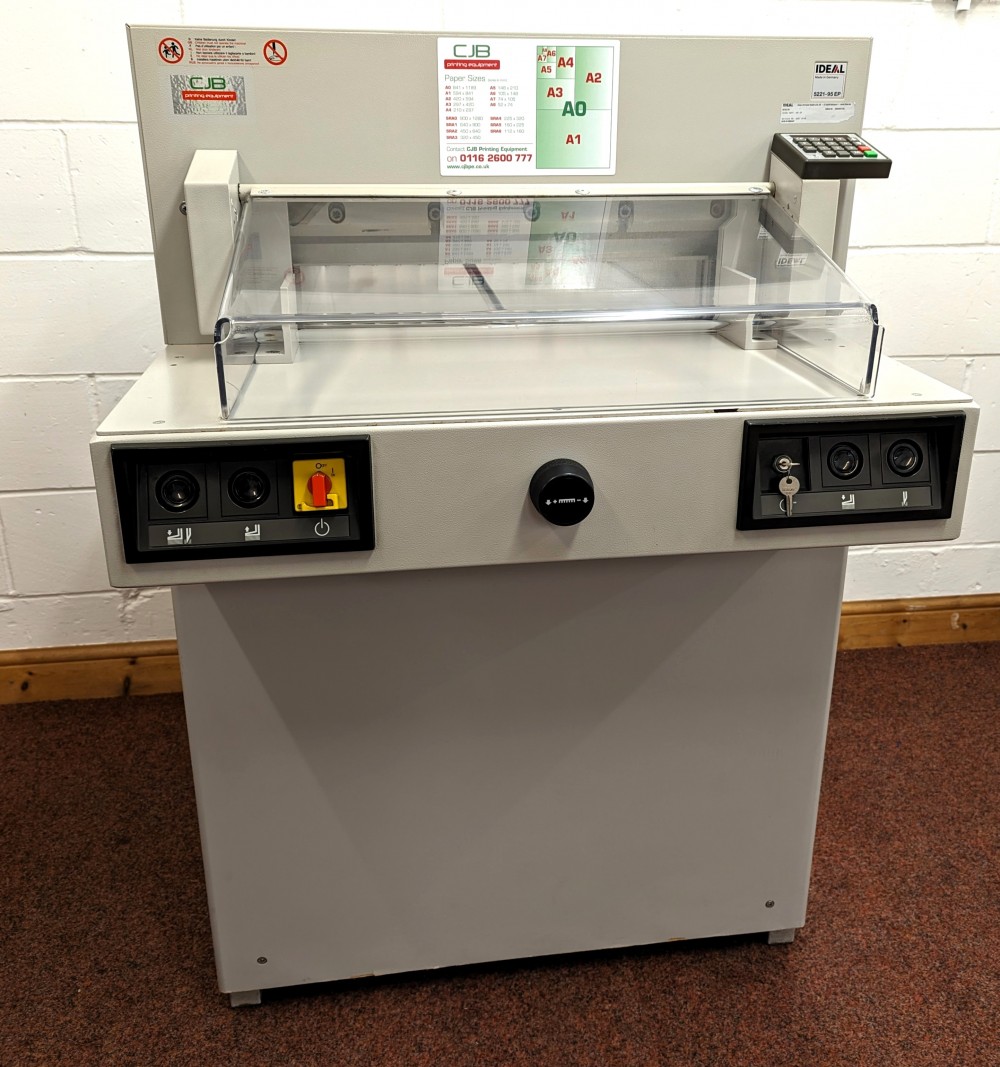

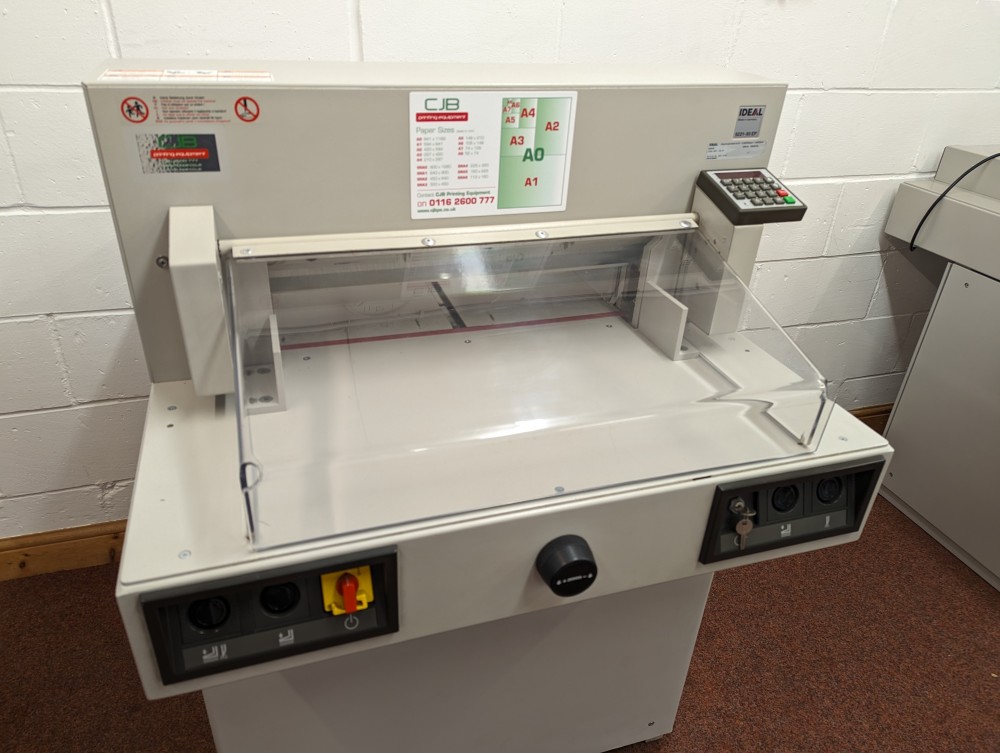

Ideal 5221-95 EP Guillotine

Product description:

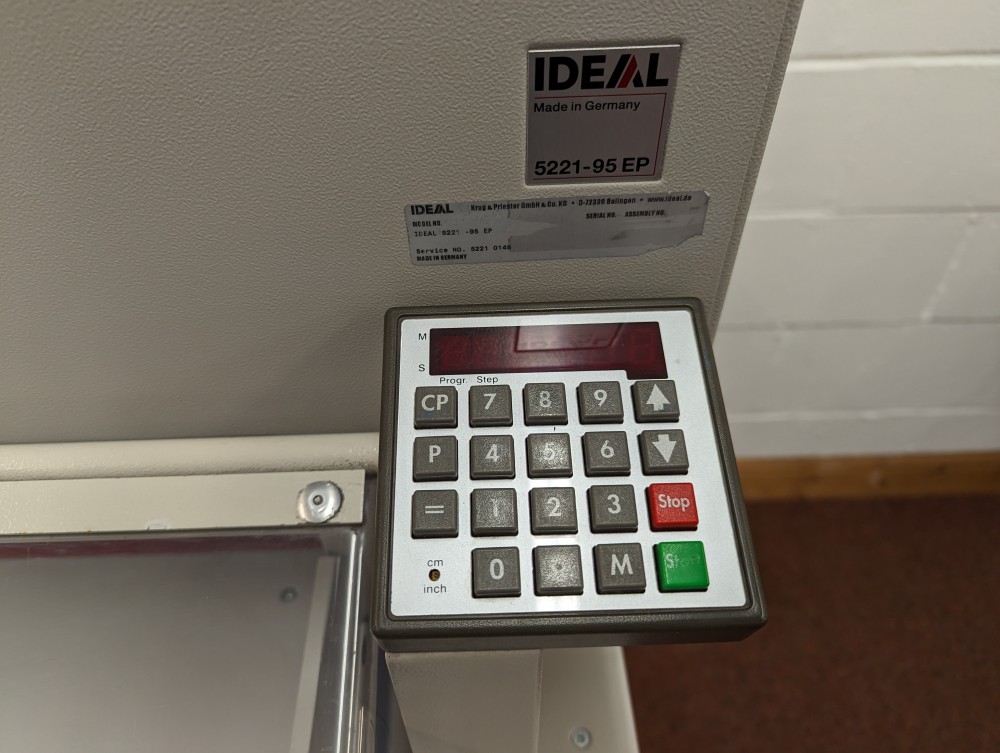

The IDEAL 5221-95 EP offers programmable control over the back gauge as well as automatic clamping and a power driven cutting blade. The program pad can store 99 cutting programs with up to 99 steps in each. A memory key can recall repeat cuts while non-standard job sizes can be entered via the key pad to control the back gauge. Manual setting is also possible using an electronic handwheel for the finest adjustments. Cutting position is checked using illuminated cutting line.

Cutting length 520 mm
Cutting height 80 mm
Narrow cut 35 mm
Table depth 520 mm
99 programs - Digital backgauge
Memory key for repeat cuts
Auto knife action
Auto clamp action
Optical cutting line
