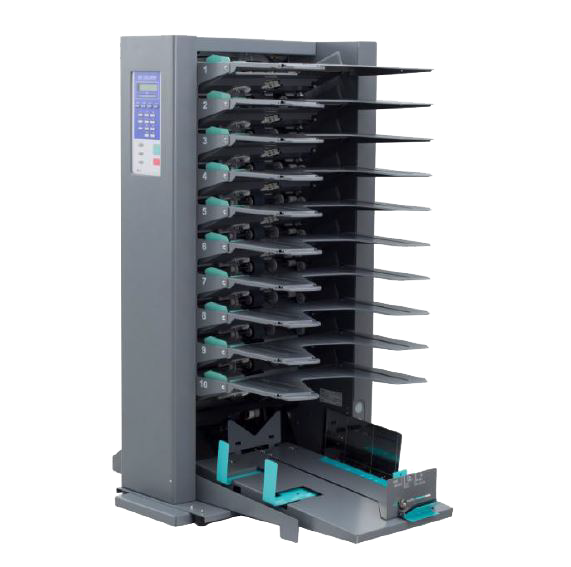

Duplo DFC-101 Collator

Product description:

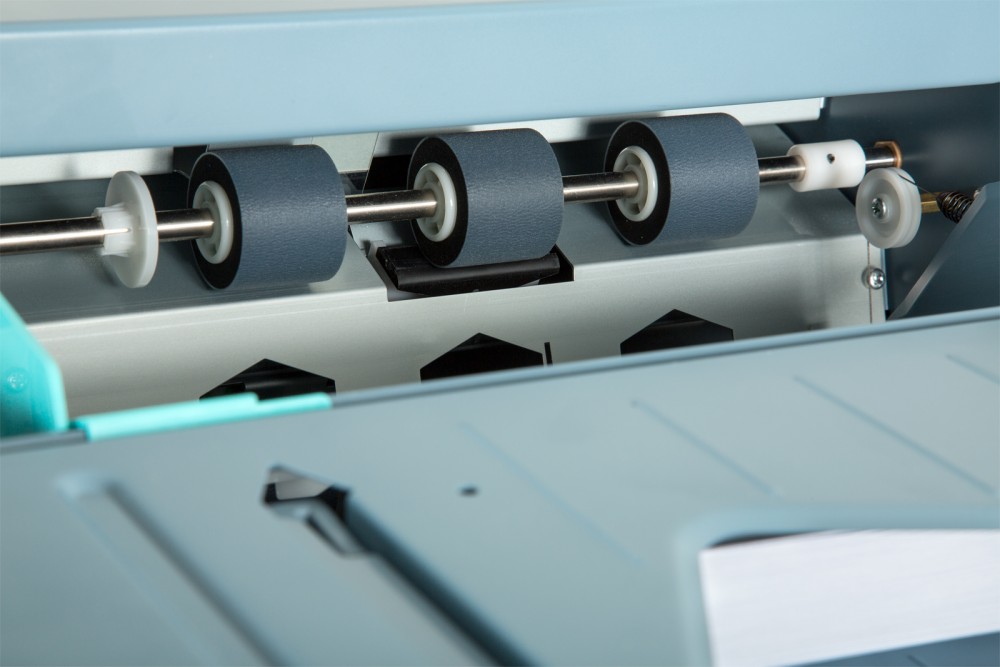

The DFC-101 is a compact and easy-to-use collator. Equipped with three feed rollers and adjustable paper separators.

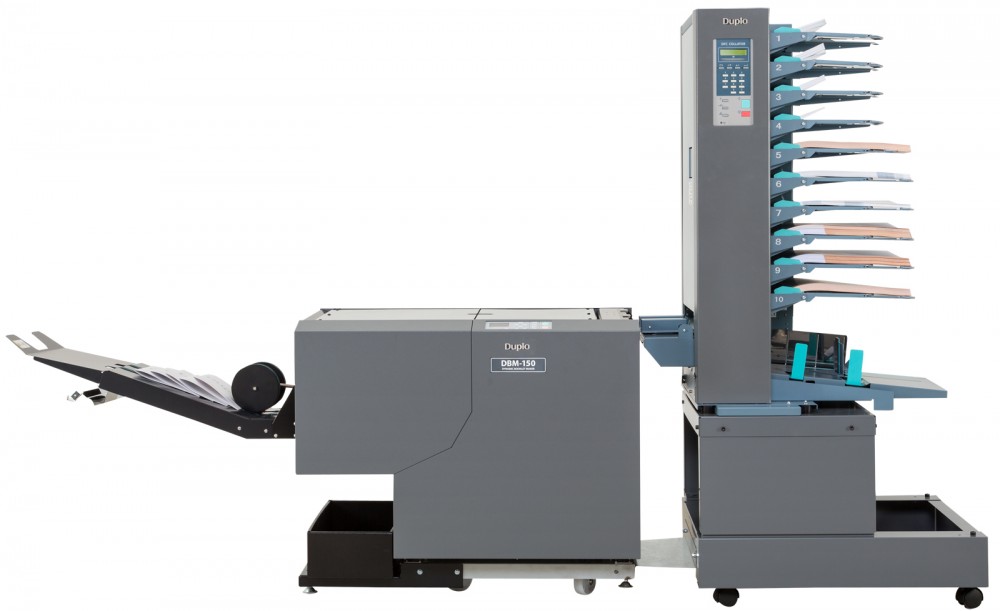

It is the fastest desktop collator available in a 10 station configuration with an output speed of up to 7,200 sets/hour. The DFC-101 can be used as a stand-alone unit or connected to a Duplo bookletmaker.

The DFC-101 provides reliable and consistent feeding of a wide variety of fine quality, uncoated papers up to 128 gsm. Double feed and mis-feed detections help ensure the accuracy of the collated set. Collated sets are delivered to the integrated stacker and can be straight or offset stacked.

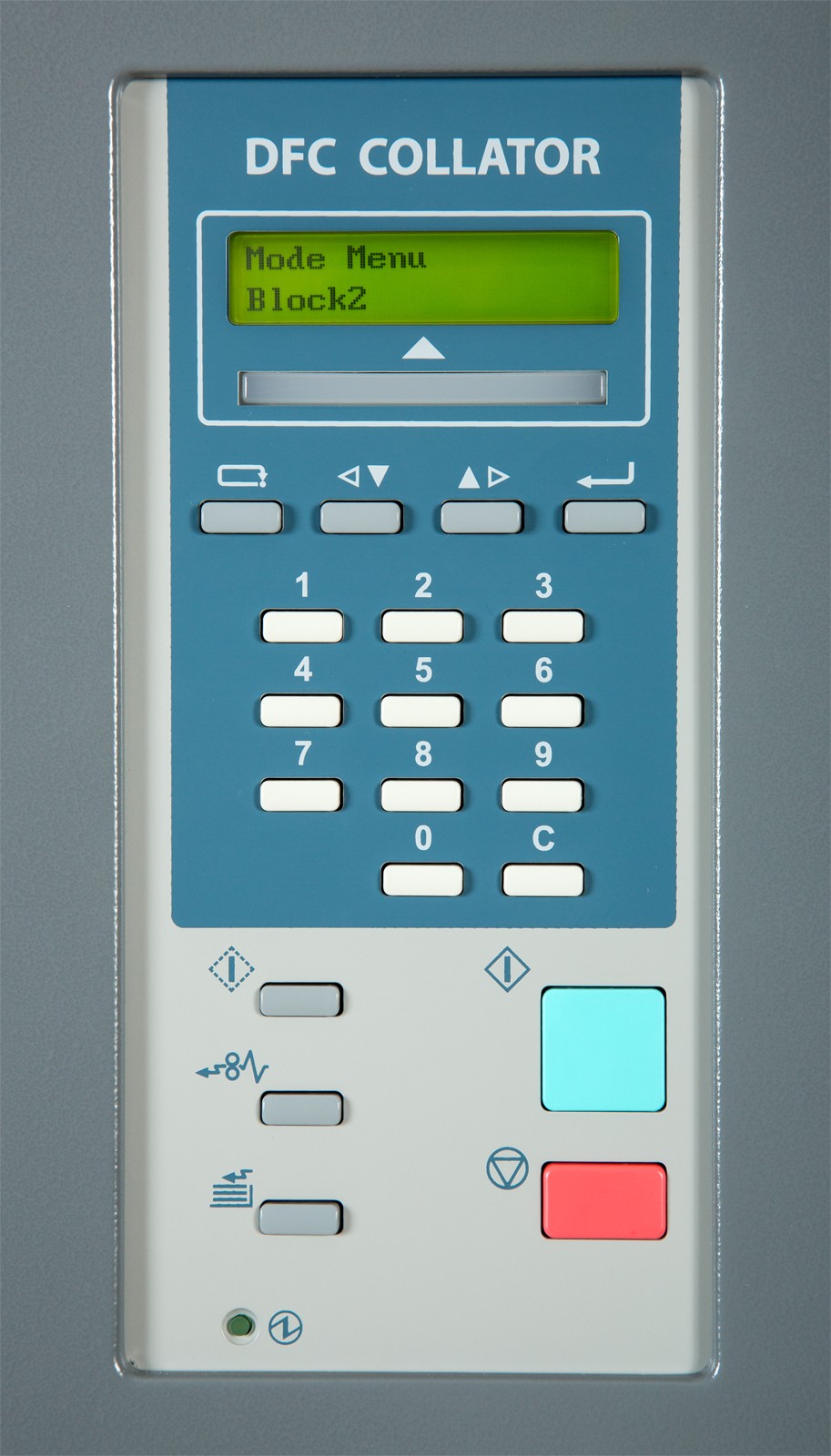

New counting modes enable the DFC-101 to be utilized as a sheet counter. The number of processed sheets is displayed on the LCD display. Other features include count up/count down, repeat collation, test feed, paper empty detection, paper jam detection, and stacker full detection.

Paper Size
Max. SRA3 320 x 450 mm
Min. A5 140 x 160 mm
Paper Stack Capacity Max 80 mm
Empty feed, double feed, paper jam

Paper Weight 52.3-128 gsm (medium/fine quality paper)
