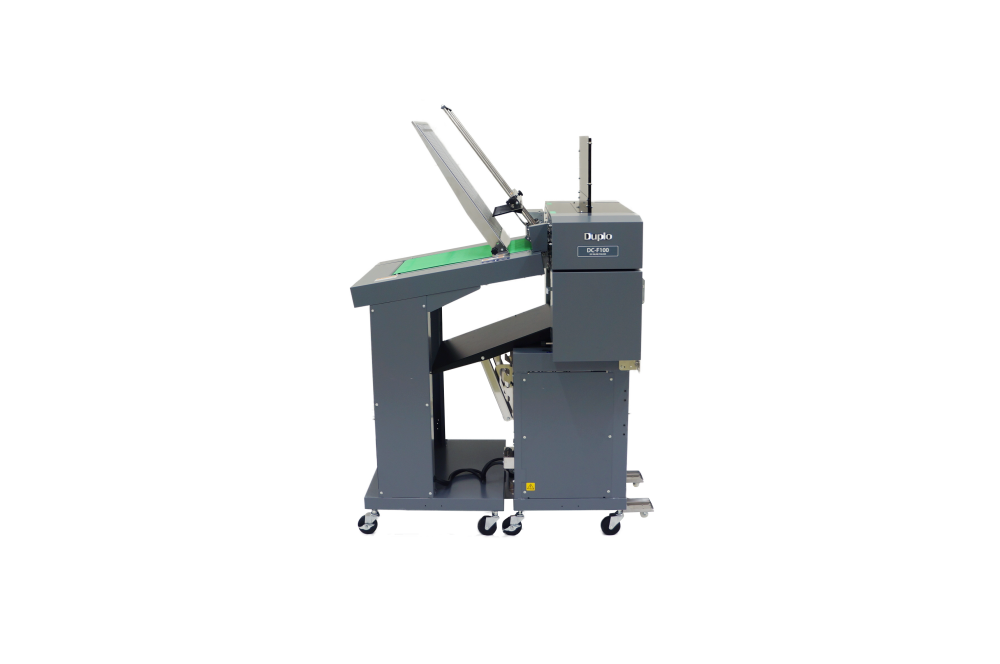

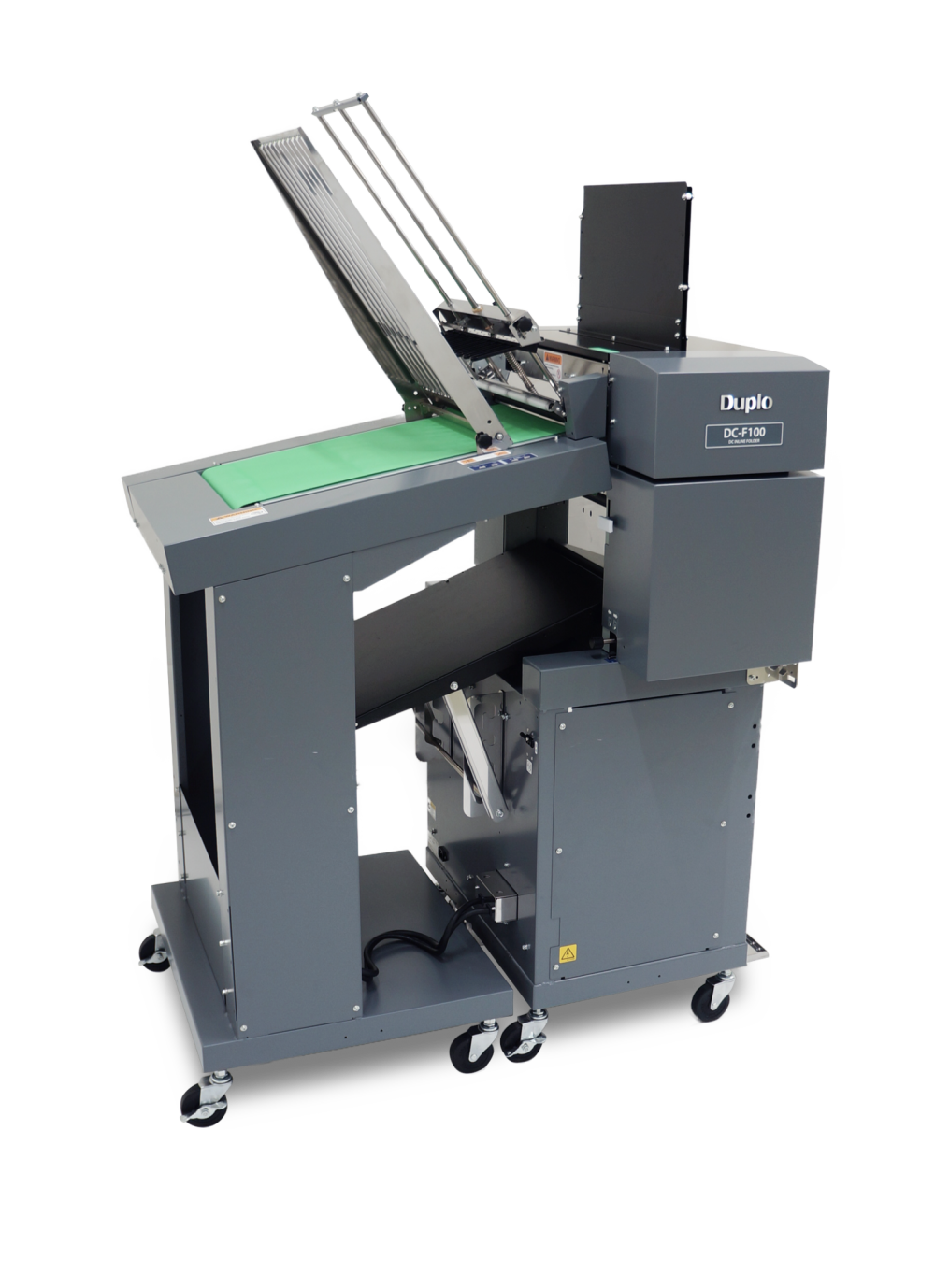

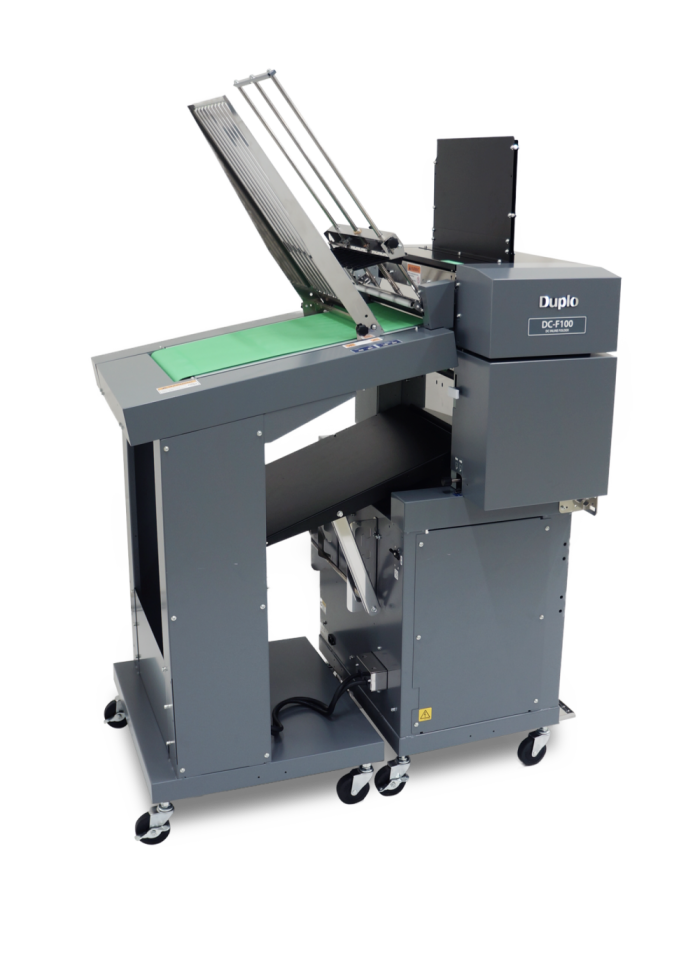

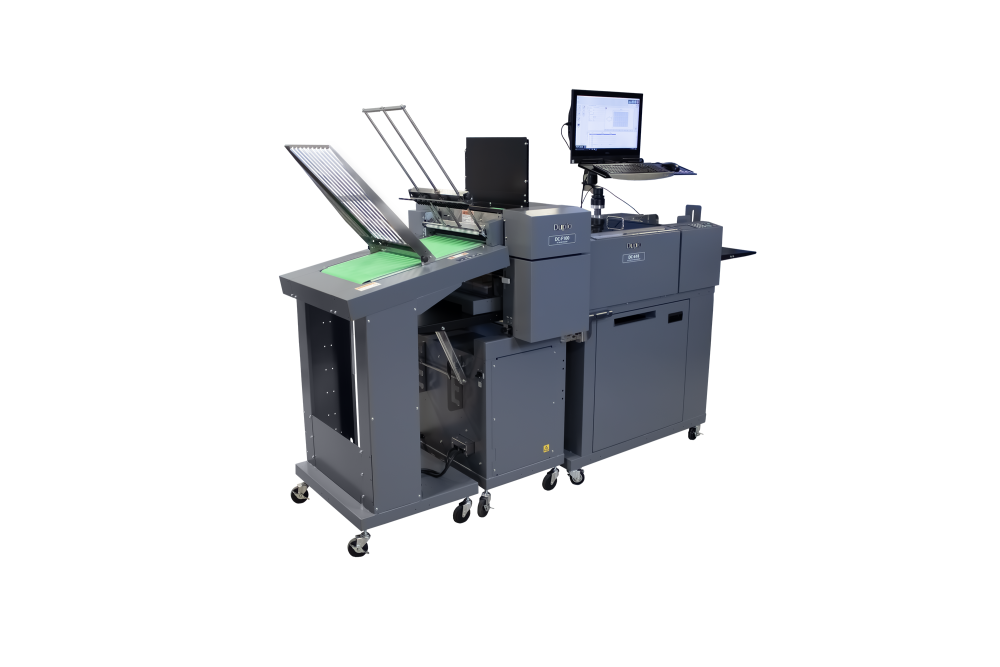

Duplo DC-F100 In-Line Folder

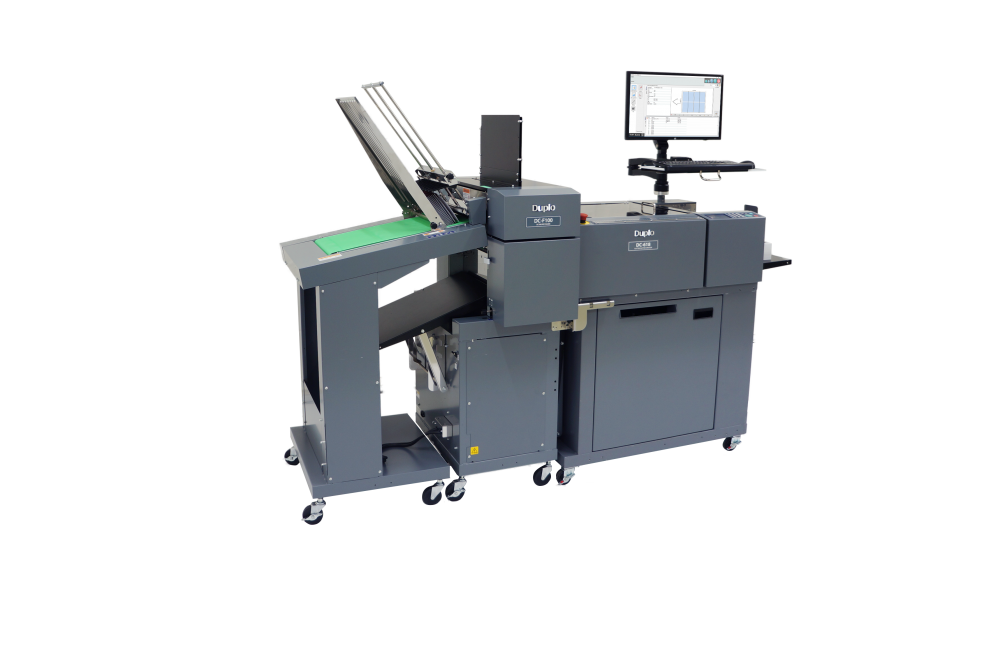

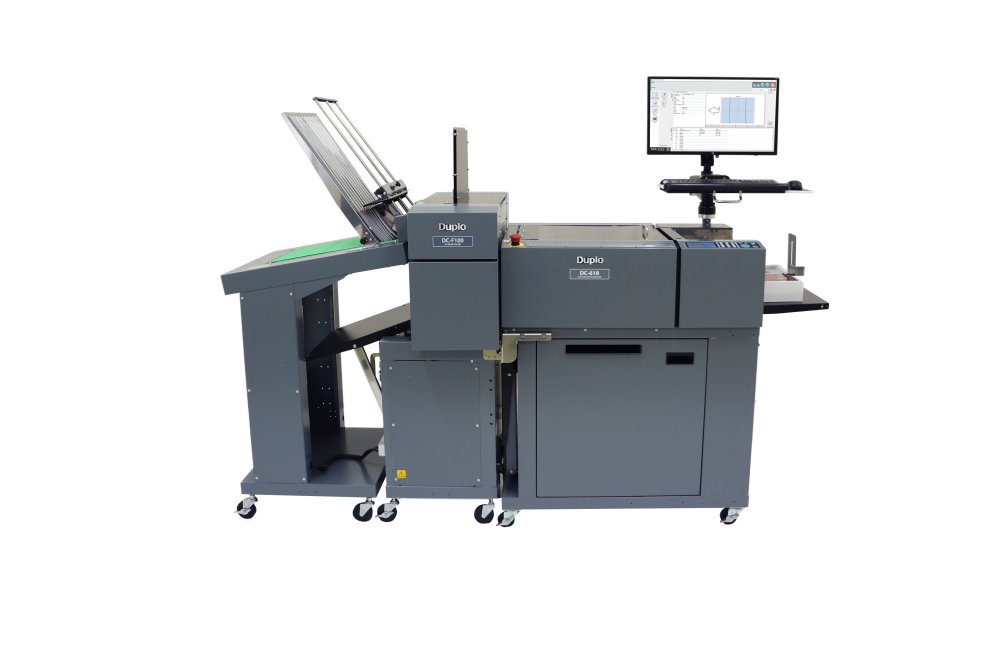

The DC-F100 streamlines your workflow by automating the entire process, from uncut sheet all the way to folding, freeing up valuable time and resources. Engineered to eliminate bottlenecks, there is no set-up of a separate devise, automatic adjustment, and set-up, plus is optimised for most common folds, as we know businesses are looking for solutions for reducing manual tasks that eat into your profits. So that you can redirect focus towards higher-value activities, that drive profitability and growth.

Fold Types: V (up/down), C, Z, Double parallel, Gate, Closed gate
Paper Type: Uncoated, Coated, Laminated, UV coated
Paper weight: 110 - 400 gsm (Double parallel: 110-230 gsm) *Laminated/UV coated stock: within the above range including lamination/coating layer. *Following the specifications of the DC model connected
Infeed width: Minimum: 48 mm Max: follows the specifications of the DC model connected
Finished length No fold: 50 - 1,000 mm / Folded: 85 - 500 mm
Gutter slits Remove gutter slits with deflectors

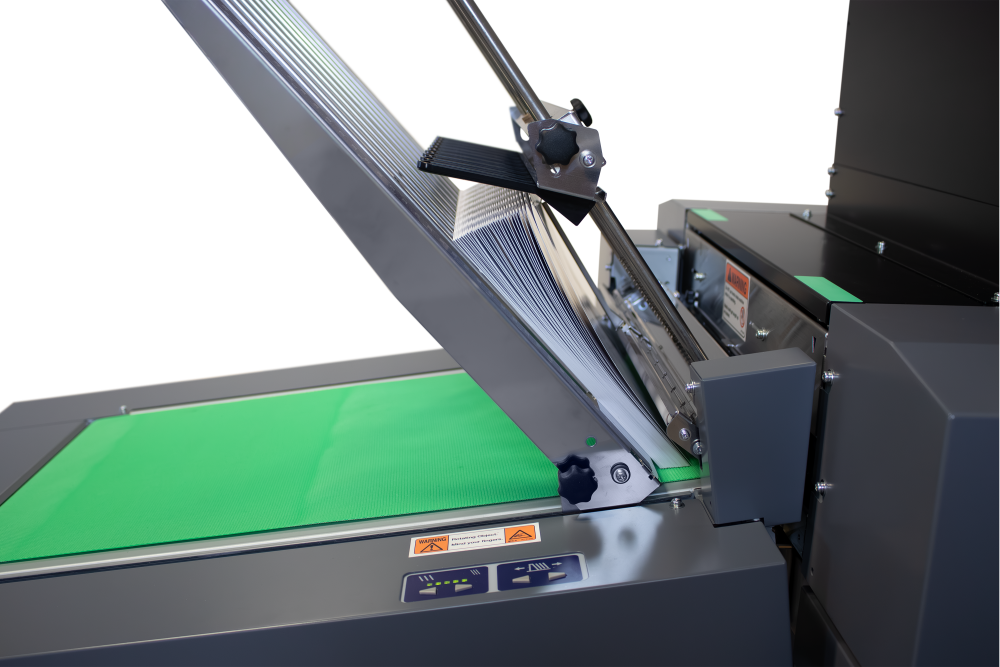

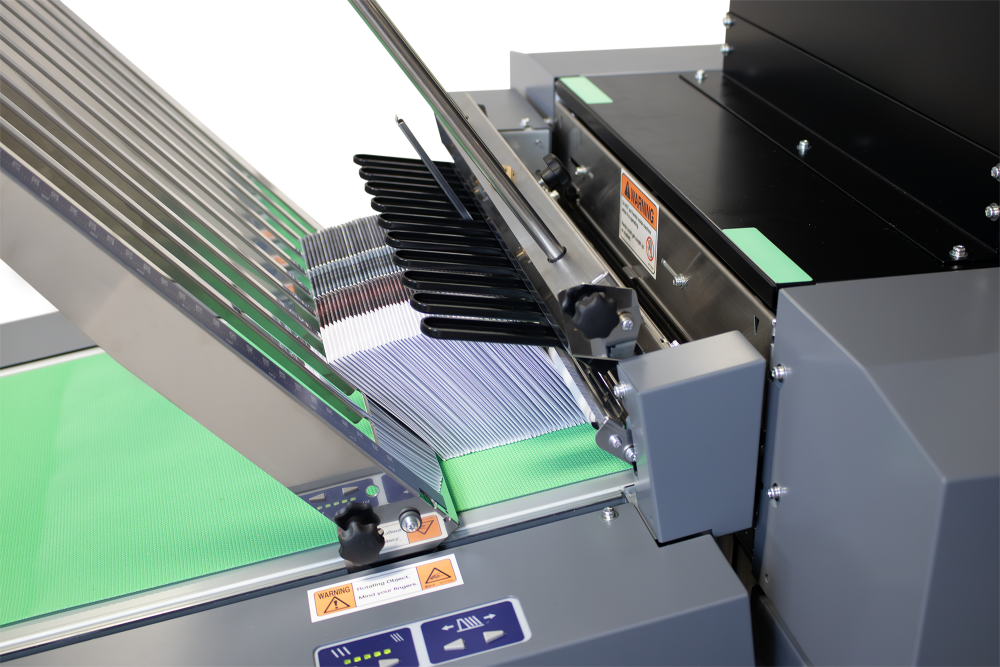

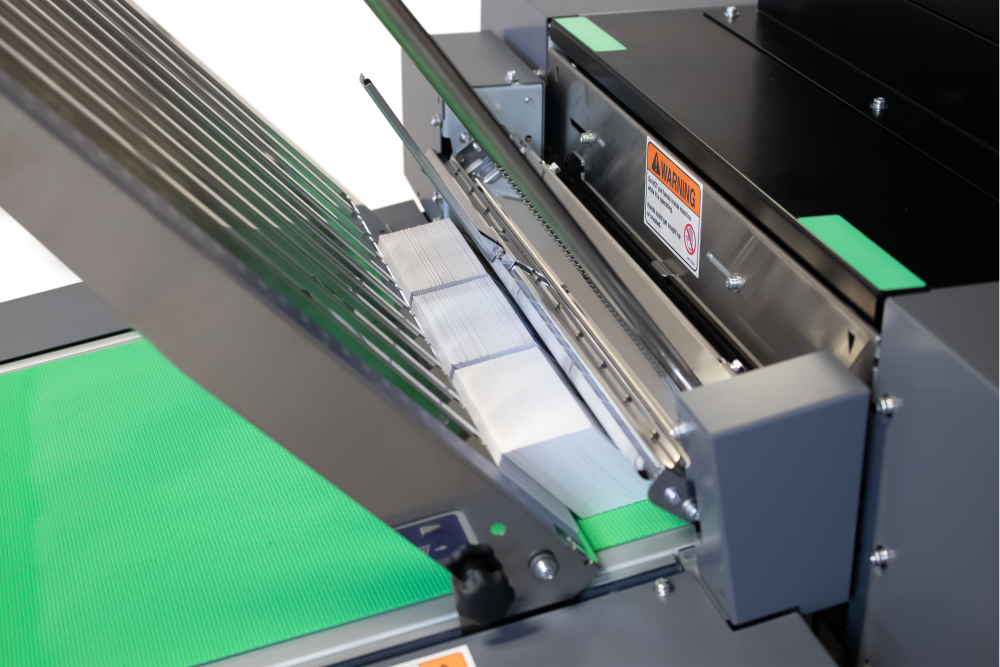

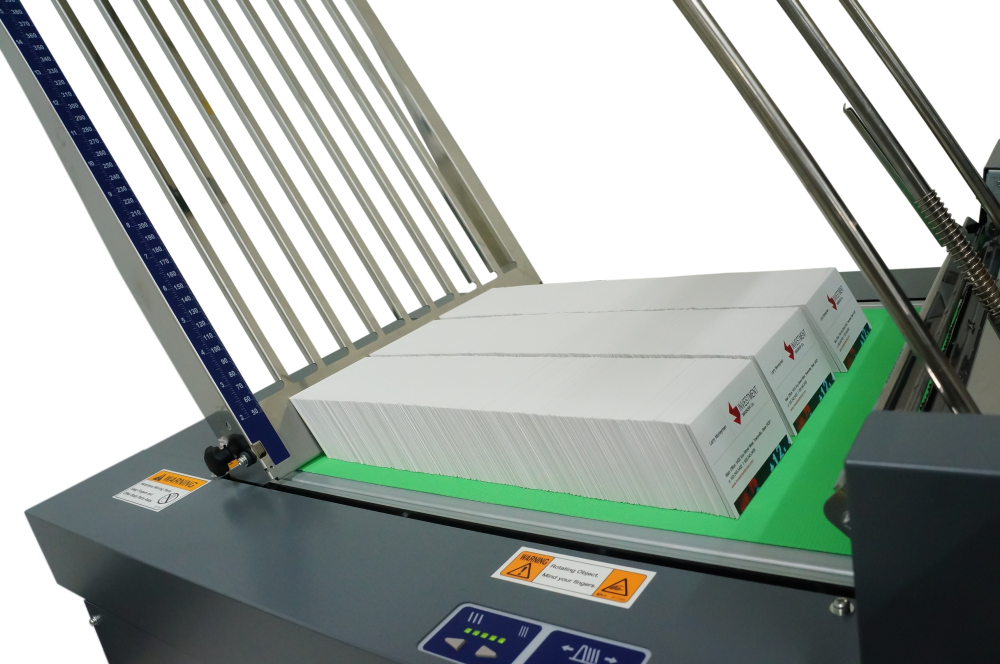

Stacker: Upper conveyor stacker : non-fold cards and folded cards Lower stacker tray: non-fold cards only DC-618 card stacker
Upper stacker card length 50 - 500 mm
Upper stacker capacity 400 mm

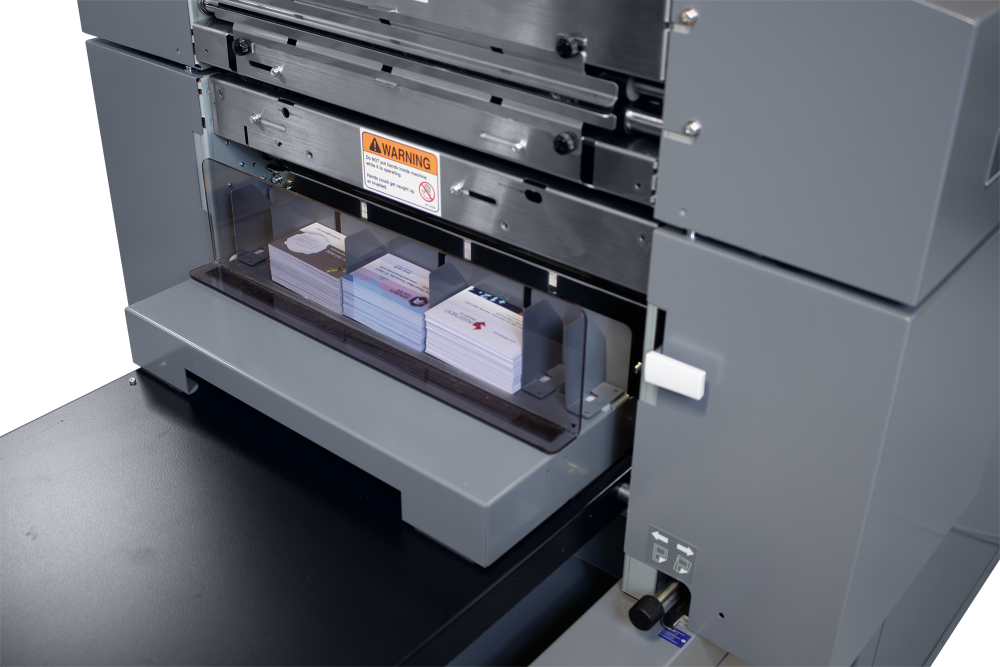

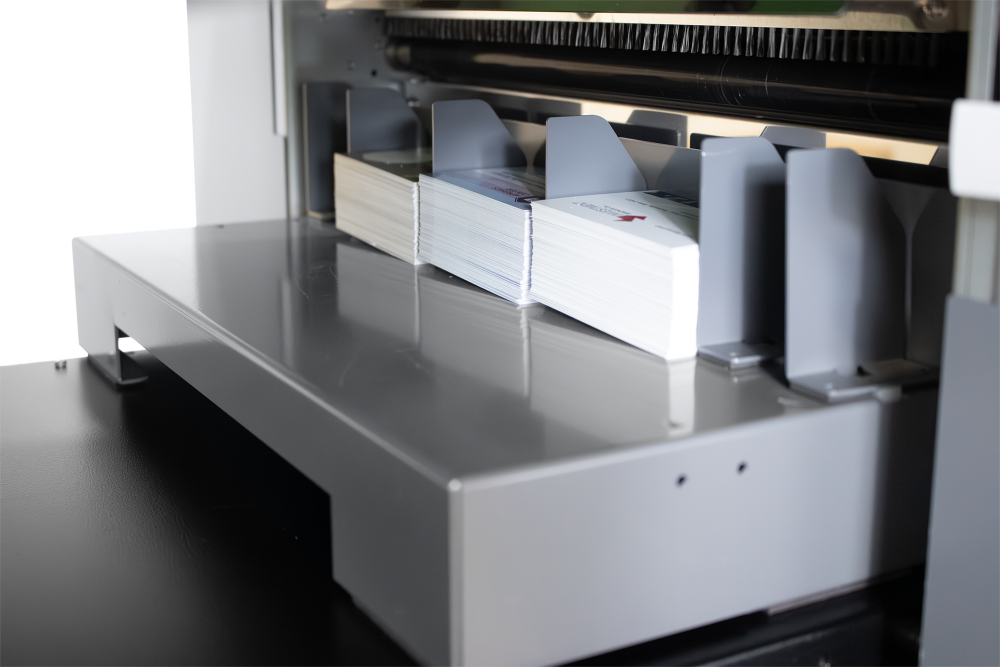

Lower Stacker Capacity 100mm
DC-618 card stacker 60mm
