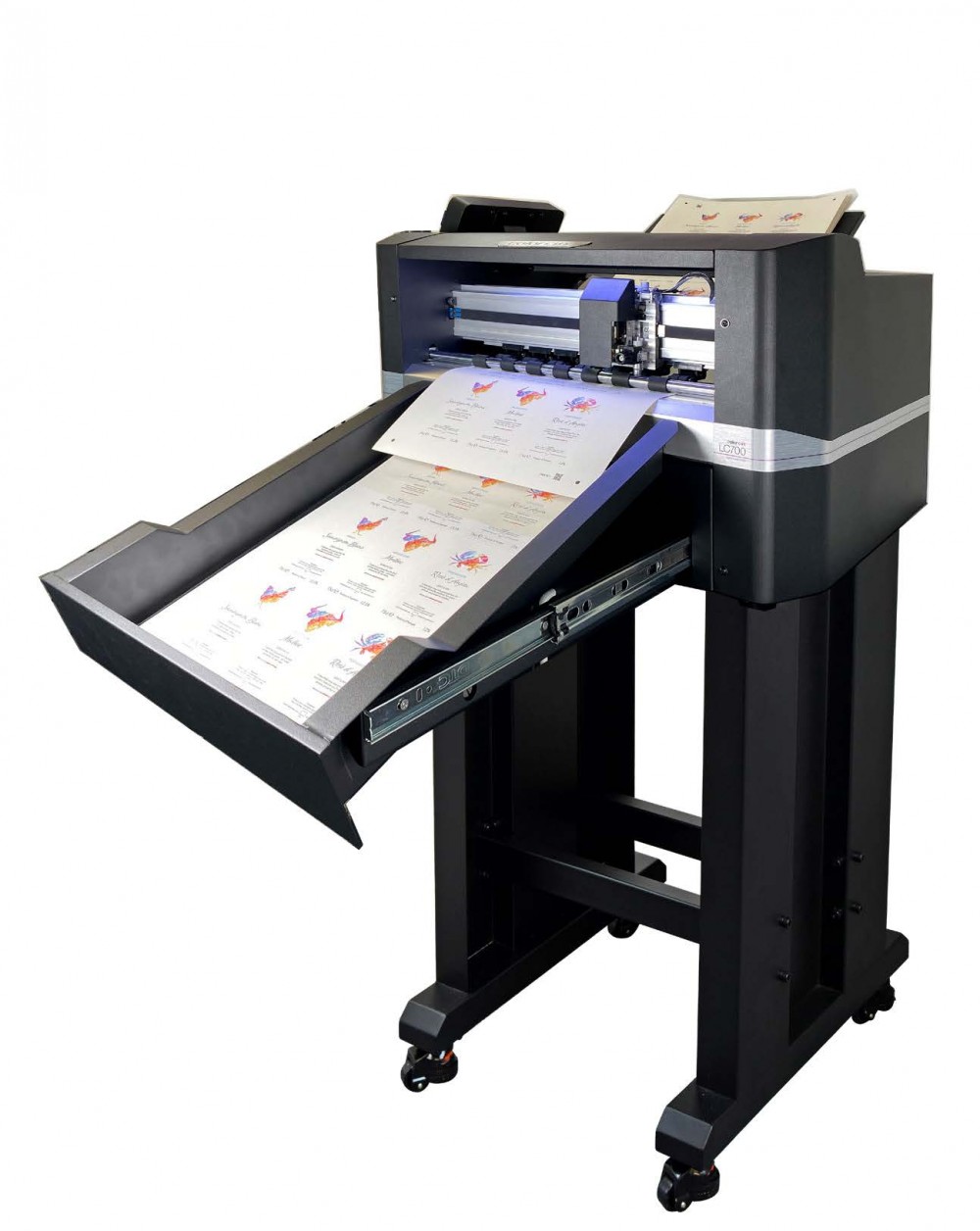

ColorCut LC700 Automatic Label Cutter

NEW
Product description:

Fully automated sheet label production with the ColorCut LC330 label cutter. Kiss-cut any shape!

Combining a reliable automated sheet label feeding system with instant QR job retrieval, for effortless, precise, kiss-cut label cutting on media up to SRA3 at lightning-fast speeds.

ColorCut LC700label cutter ‘on demand’ digital sheet label cutter is designed to provide automatic sheet label cutting for digital print production users, with NO die’s or setup costs.

Targeted for busy print departments, seeking complete unattended cutting production, the LC700 combines reliable label-sheet feeding with an instant job retrieval system – this enables effortless, yet precise, kiss cut label cutting at lightning-fast speeds.

Digitally cut any shape labels at up to 1060mm/sec
Digital process means no more costly dies
Cut closer to media edges with the ‘Dual Grip’ feed system
QR code/Job Library retrieves associated cut files – even for mixed job batch sessions
Auto stacker/feeder takes up to 250 sheets
Paper stacker holds A3+, SRA3, A3, A4 and custom sizes for a maximum cutting length of 750mm
Versatility ‘built-in’ – expandable into a full Roll-to-Roll label cutting system with the optional LF700
SmartMark registration delivers incredible accuracy – enabled via included ColorCut Pro software
Run jobs from computer or from a USB drive

Media sizes Max: 330 x 750mm Min: 150 x 190mm
Media thickness 0.14mm (140 micron/140g/m²) - 0.35mm (350micron/350g/m²)
Auto-sheet capacityUp to 250 sheet auto-sheet feeder
Max speed/Max force1060mm/s 750gf
Registration system Vision3 - High resolution CCD vision system ARMS 9
Cut position accuracy+/- 100 micron
Mountable tools Single tool holder supports cutting blades (30°, 45° & 60°) and pen calibration tool for auto-calibration
